Dual Side Flow Bucket- Light Material | Top Dog Attachments

Light material bucket attachment with dual-side discharge.

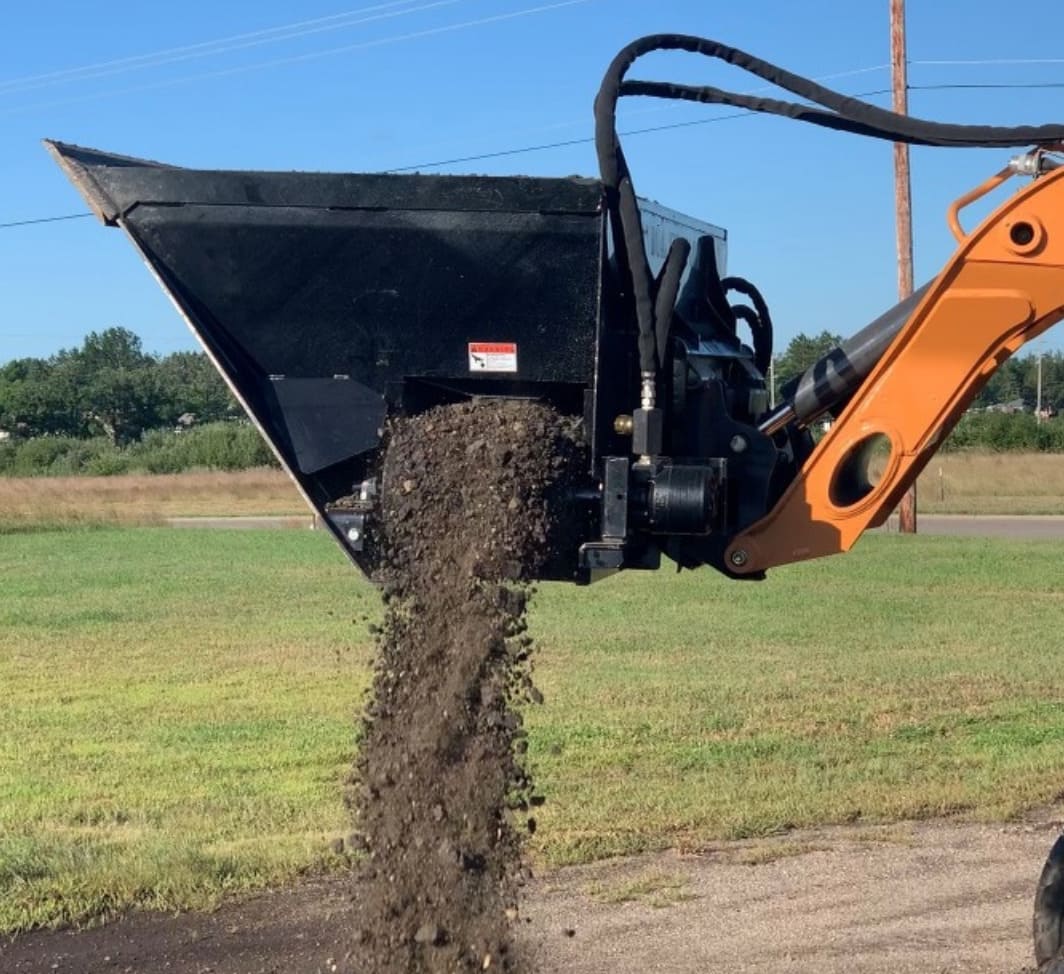

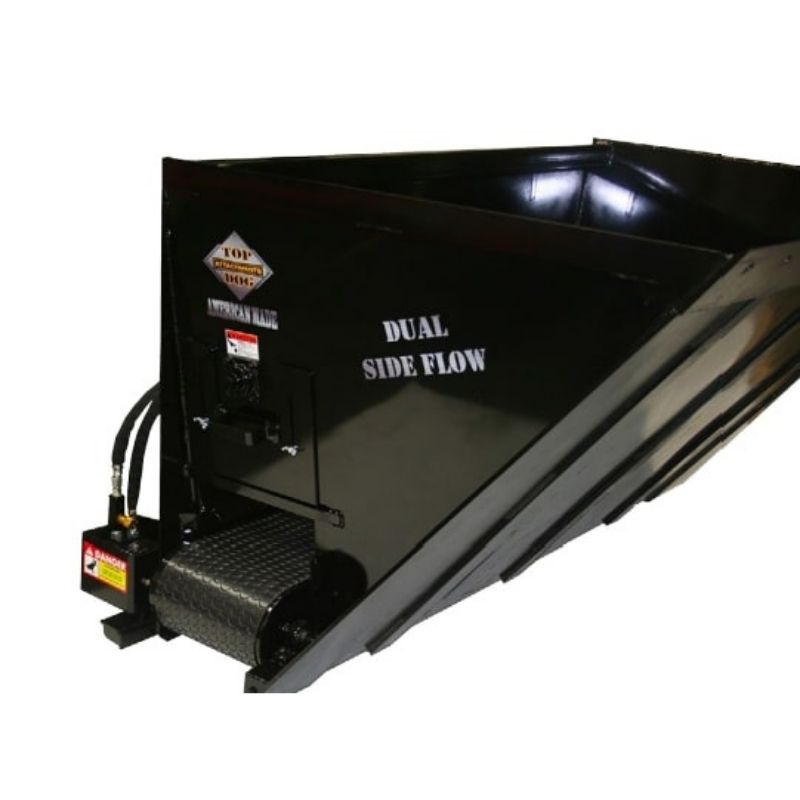

This Dual Side Flow Bucket from Top Dog Attachments lets the material be scooped up and moved out through two side discharge openings. The operator can convert this attachment into a bucket by rotating and lowering the attachment. This allows for scooping the material up; it rotates and raises to become a spreader/feeder. The side flow bucket has three orbit motors, one to run the beater bar, which helps prevent material bridging, and two from operating the flexible track that sends the material out the right or left side opening.

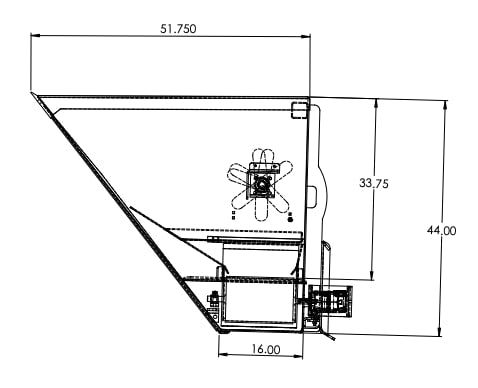

SPECIFICATIONS

• Overall Width: 97”
• Overall Height: 44″
• Overall Depth: 52″
• Struck Capacity: 46 cu. ft
• Heaped Capacity: 55.2 cu. ft
• Belt Motors: 4.9 cu. in – Dual Motors
• Beater Bar Motor: 18.6 cu.in
• Flow GPM: 15-20 GPM
• Belt Speed: Adjustable ( Dual Control Valves)
• Belt: 5/16″ thick, 2-Ply Asphalt Belt
• Hydraulic Couplers: Flat Face
• Hydraulic Hoses: 1/2″
• PSI Min/Max: 2,500
• Bearings: 1″ Pillow Block (2)
• Cutting Edge: 5/8″ x 6
• Mounting Plate: 5/16″
• Pivot points: Greece Zerks
• Tensioners: Manually Adjustable ( 4) locations
• Bucket thickness: 3/16″
• Wear Bars: 3/8″
• Weight: 1350LBS
• Proudly made in the USA
