Industrial Rod Rock Grapple for Skid Steers - Haugen Attachments

Options

Industrial Rod Grapple

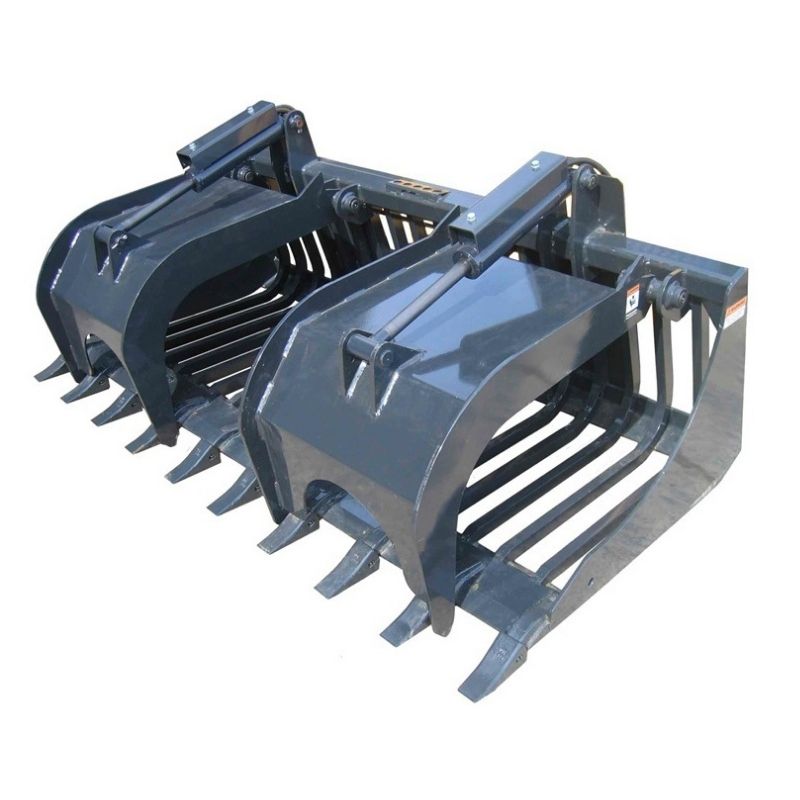

This Industrial Rod Grapple for Skid Steers from Haugen is perfect for handling those big or small rocks and those awkward debris piles. This beast is made up of heavy-duty tines that are 1” x 1.5” curved flat bars that will keep you sifting, piles rocks and debris for years to come. With the independent twin grapples you’ll be able to make quick work of getting those pesky branches dislodged.

Haugen uses a 3” spacing between tines because you, the customers, asked for it. Very impressive hose routing with abrasion sleeves to protect the hoses from chafing and pinching. Available in two sizes 76" 84”, with weld-on tooth bar and replaceable teeth. Maintenance has never been easier by having all pivot points grease-able.

Haugen has built this Rod Grapple to last with 2.5” by 10” industrial cylinders for ultimate clamping force on those cumbersome rocks and debris. Contact us if you require a euro/global mount or specific tractor mount. This attachment comes with a heavy-duty universal skid steer mount.

 "Think Quality - Think Safety - Think Haugen" Made in the USA

Features

  • Weld-on Tooth bar with replaceable teeth
  • All pivot points are greaseable
  • Excellent hose routing and abrasion sleeves to protect the hoses from damage
  • HD universal skid steer mount
  • 3 inch spacing between the rods
  • Heavy-duty Tines are made of 1” x 1.5”’ curved flat bar
  • Double cylinder grapple with independent claws
  • Industrial 2.5" x 10" cylinders
  • Powder Coat Finish
  • Many sizes available
  • 1-year warranty
  • Made in the USA

Options

  • Euro/global style mount
  • Other Tractor mounts available

      Specifications

      Spec HIRG 76 HIRG 84
      Bucket Width 76" 84"
      Depth of Bucket 42" 42"
      Height of Bucket Back 25" 25"
      Height w/ Grapple closed 32" 32"
      Overall Grapple Width 63" 71"
      Grapple Width each 21.5" 21.5"
      Grapple Opening 40.5" 40.5"
      Weight 1,230 lbs. 1,330 lbs.
      Rod Size/Flat Bar Size 1" x 1.5" 1" x 1.5"
      Tine Spacing 3" 3"
      Cast Tooth w/ replaceable Tip 10 11
