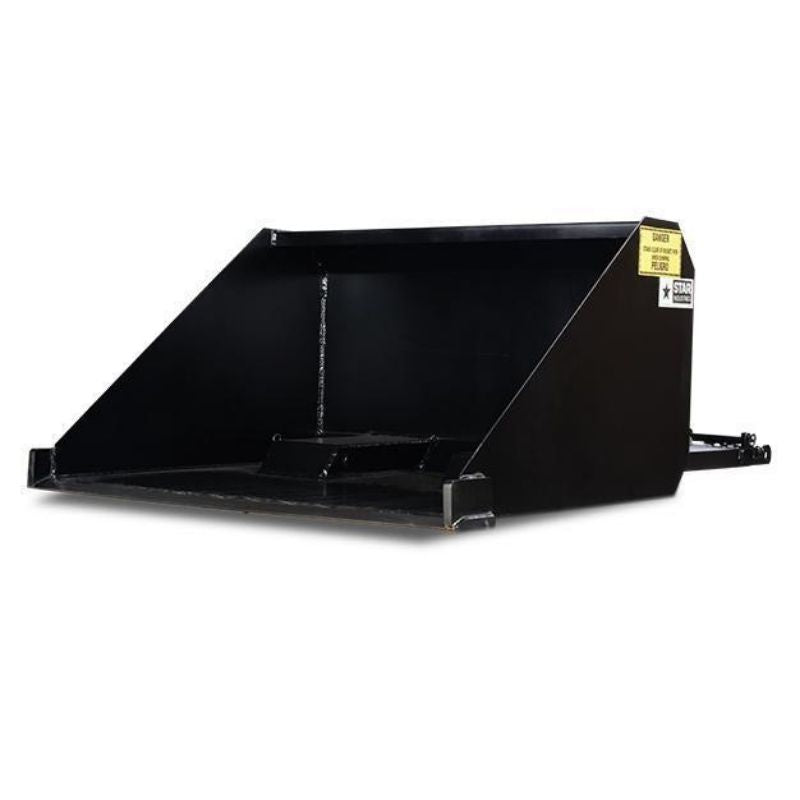

The bucket installs in minutes and is the perfect solution for loading loose material. No modification to the forklift is required. A hydraulic dump option is also available.

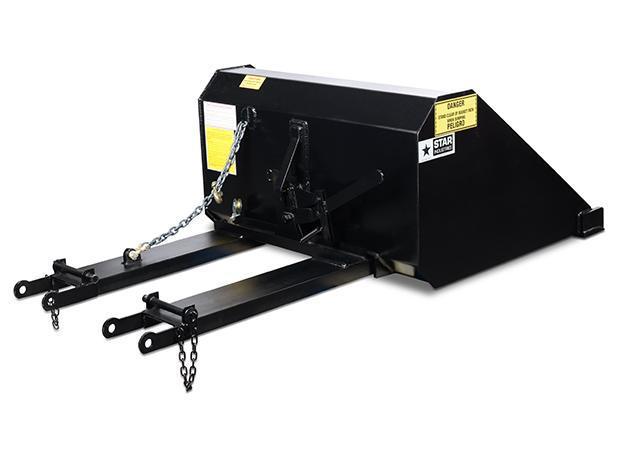

No modifications or hydraulics required. Simply slide the bucket on the forks and insert the pins to lock it on. The bucket can be tripped with the handle at the back of the bucket or from the operator’s seat with the remote rope release. Lowering the bucket to the ground resets the bucket for the next load. The safety lock prevents accidental tripping of the bucket release during transport.
The Hydraulic self-dump bucket provides precise control of the discharge. Hydraulic flow from the forklift is required (hydraulic control valve not included). If the forklift is equipped with a hydraulic side shift, flow from that valve can typically be diverted to the bucket cylinder.
The universal, slip-on-the-fork model can be used with any make and model of extendable-reach forklift that is equipped with standard 48” long forks. The bucket slides on to the forks and secured with pins behind the heel. Because the forks and carriage remain on the forklift, there’s less chance of damage or loss to the forks. This design features a deeper bucket, making transport of irregular shaped loads easier.
| Model | Width | Capacity | Weight |
|---|---|---|---|
| 1440SD | 45” ID | ¼ cuyd | 420 lbs |
| 1445SD | 45” ID | ½ cuyd | 525 lbs |
| 1472SD | 72” ID | ¾ cuyd | 668 lbs |
| 1484SD | 84” ID | 1 cuyd | 790 lbs |
| Model | Width | Capacity | Weight |
|---|---|---|---|
| 1445SDH | 45” ID | ½ cuyd | 600 lbs |
| 1472SDH | 72” ID | ¾ cuyd | 760 lbs |
| 1484SDH | 84” ID | 1 cuyd | 860 lbs |
* Specify length, thickness and width of forks when ordering
Applies to Manual and Hydraulic
| Capacity | A | B | C | D |
|---|---|---|---|---|
| ¼ cuyd | 57″ | 18″ | 19″ | 60° |
| ½ cuyd | 65″ | 25″ | 23″ | 52° |
| ¾ cuyd | 65″ | 25″ | 23″ | 52° |
| 1 cuyd | 65″ | 25″ | 23″ | 52° |
Star Products are warranted to the original purchaser against defective workmanship and/or materials (when properly installed, used, and maintained) for a period as specified below from date of delivery to the customer by an authorized Star Dealer or direct from Star Industries. This warranty does not cover misuse, abuse, normal wear and tear, or acci- dental damage.
5 Year Warranty:All Star products except as noted below
(Includes HD Auger Drives and most non-hydraulic products)
2 Year Warranty:Medium Duty Auger Drives
1 Year Warranty:Auger Bits and Auger Accessories (excludes auger drives), Crane Forks, Grapples, Angle Broom, Self Dumping Hoppers, Replacement Forks, and Over the Bucket Forks.
6 Months Warranty:Concrete Mixers
Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax.
