Quick-Tach Truss Booms - Star Industries

Size

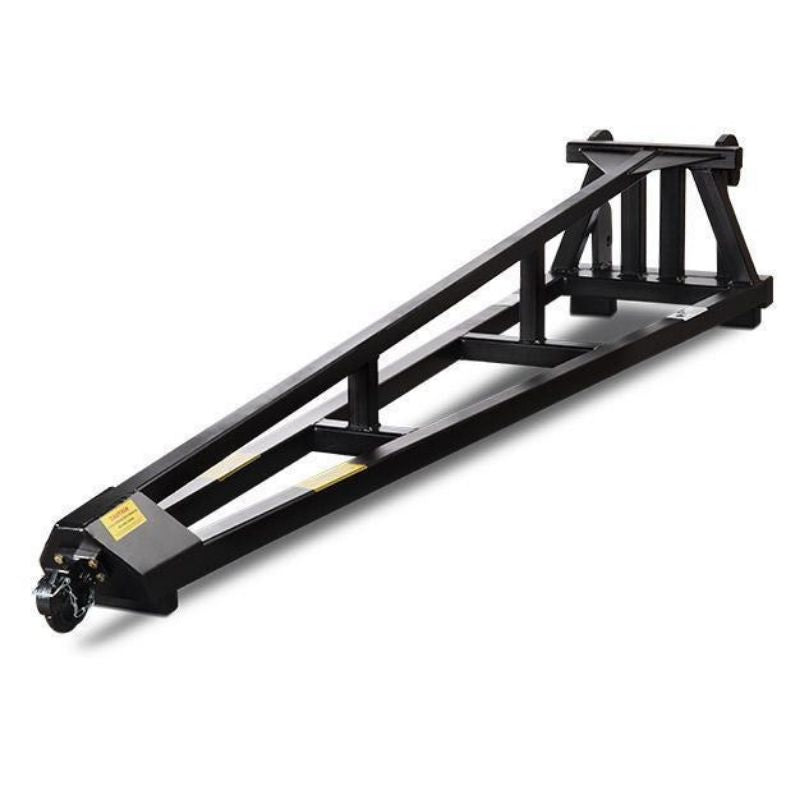

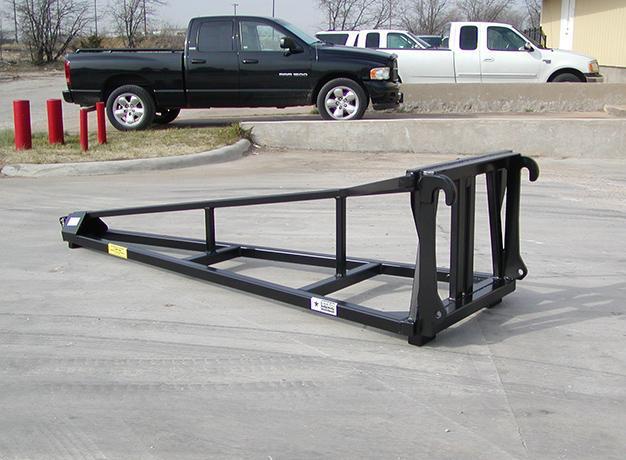

This Quick-Tach Truss Booms from Star Industries will save the cost of an expensive crane.

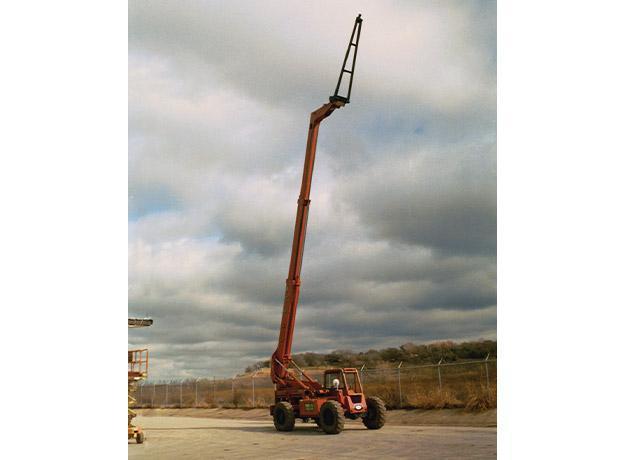

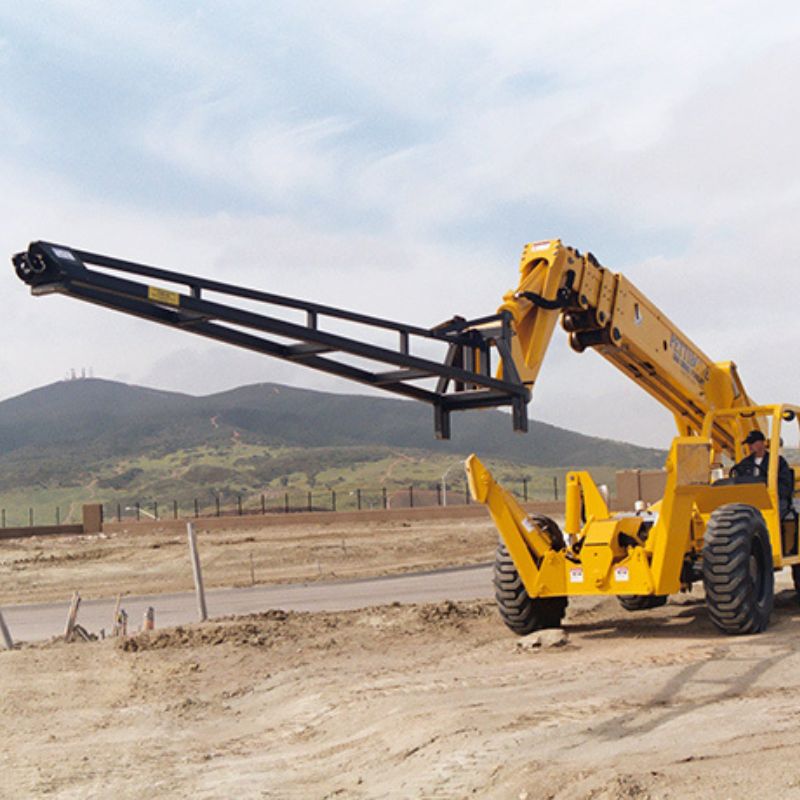

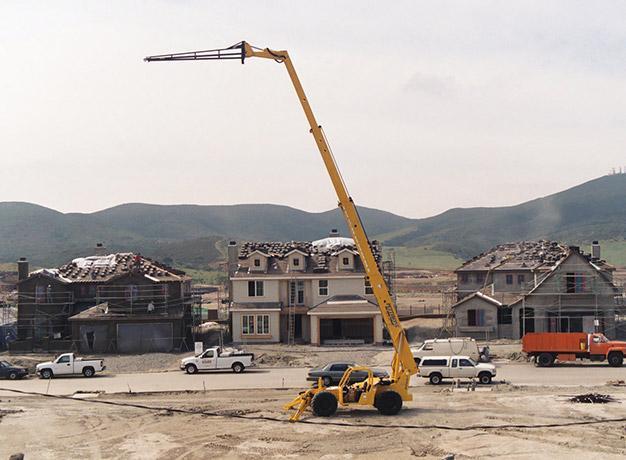

It comes with a vertical reach of up to 15 feet and a load capacity between 2,000 lbs to 22,000 lbs. The Star Quick-Tach Truss Boom is perfect for metal building construction, setting wooden trusses, putting up post-frame buildings, and other crane-type jobs.

We will be in contact with you to get the make and model of your machine once an order is placed so you get the right attachment you need.

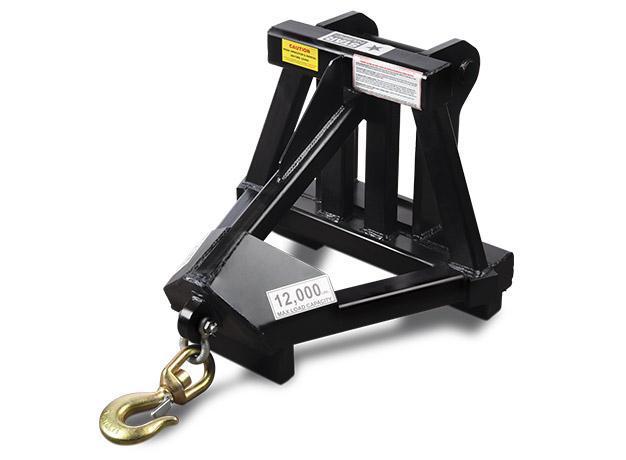

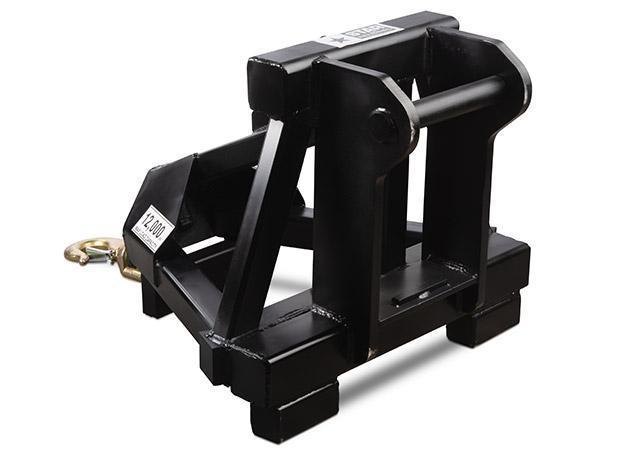

2ft. Truss Boom


    Quick-Tach Truss Boom Options


    Style Model A Effective Length B Effective Length C Back Width Capacity Empty Weight Overall Length
    Low Profile
    Truss Boom

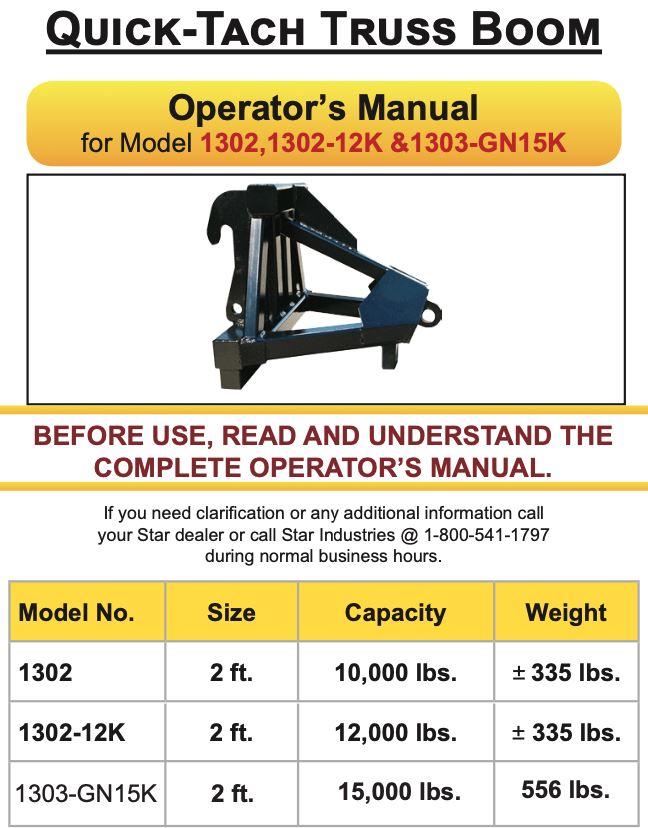

    1302 2 ft 26.5” 31” 10,000 lbs ± 335 lbs 2’ – 5”
    1302-12K 2 ft 26.5” 31” 12,000 lbs ± 341 lbs 2’ – 5”
    1303 2 ft 36” 40” up to 22,000 lbs ± 550 lbs 2’ – 5”

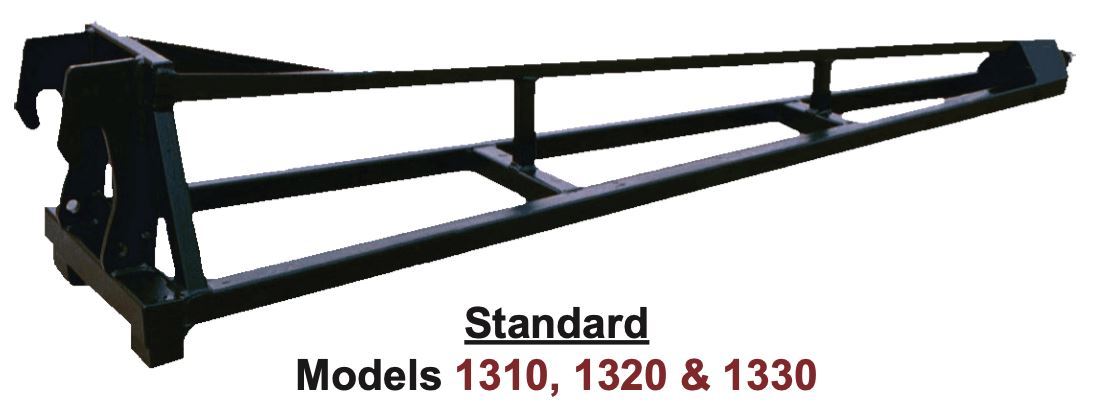

    1310 10 ft 26.5” 31” 2,000 lbs ± 480 lbs 10’ – 5”
    1320 12 ft 26.5” 31” 2,000 lbs ± 560 lbs 12’ – 0”
    1330 15 ft 26.5” 31” 2,000 lbs ± 640 lbs 15’ – 5”

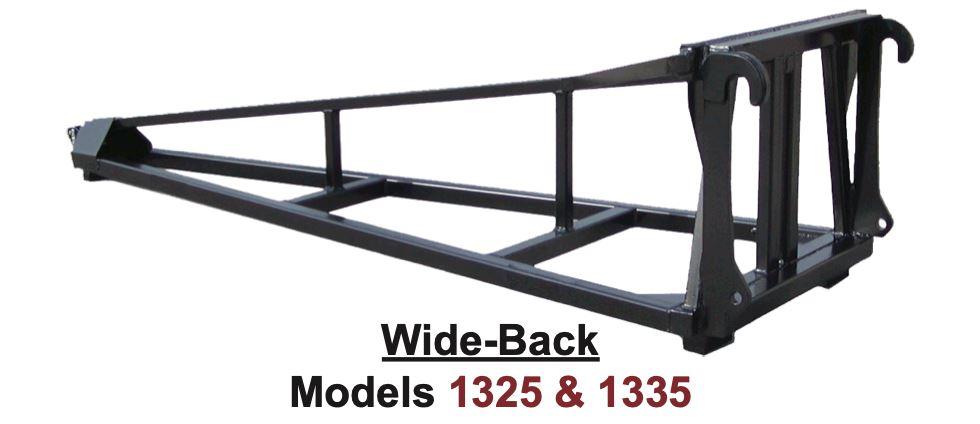

    Wide Back
    Truss Boom
    1325 12 ft 36” 45” 2,000 lbs ± 90 lbs 12’ – 4”
    1335 15 ft 36” 45” 2,000 lbs ± 795 lbs 15’ – 4”
    • The standard “Low Profile” Truss Boom is used with most forklift models except those that utilize an extra wide quick-tach design.
    • JCB Q-Fit, Gehl Dynacarrier, Bobcat Versa Handler and Ingersoll-Rand models VR518, VR623, VR638 quick-tach designs require the “Wide Back”.
    • Dimensions and empty weights will vary depending on which Quick-Tach is required. Above load ratings are for the truss boom only and do not reflect actual forklift load capabilities. Forklift make, model, quick-tach style and serial number may be required when ordering.

    Star Products are warranted to the original purchaser against defective workmanship and/or materials (when properly installed, used, and maintained) for a period as specified below from date of delivery to the customer by an authorized Star Dealer or direct from Star Industries. This warranty does not cover misuse, abuse, normal wear and tear, or acci- dental damage.
    5 Year Warranty:All Star products except as noted below
    (Includes HD Auger Drives and most non-hydraulic products)
    2 Year Warranty:Medium Duty Auger Drives
    1 Year Warranty:Auger Bits and Auger Accessories (excludes auger drives), Crane Forks, Grapples, Angle Broom, Self Dumping Hoppers, Replacement Forks, and Over the Bucket Forks.
    6 Months Warranty:Concrete Mixers

    Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax.
