Open Front Brush Cutter | Top Dog Attachments

Options

These brush cutters are extremely helpful when it comes to clearing out wooded areas.

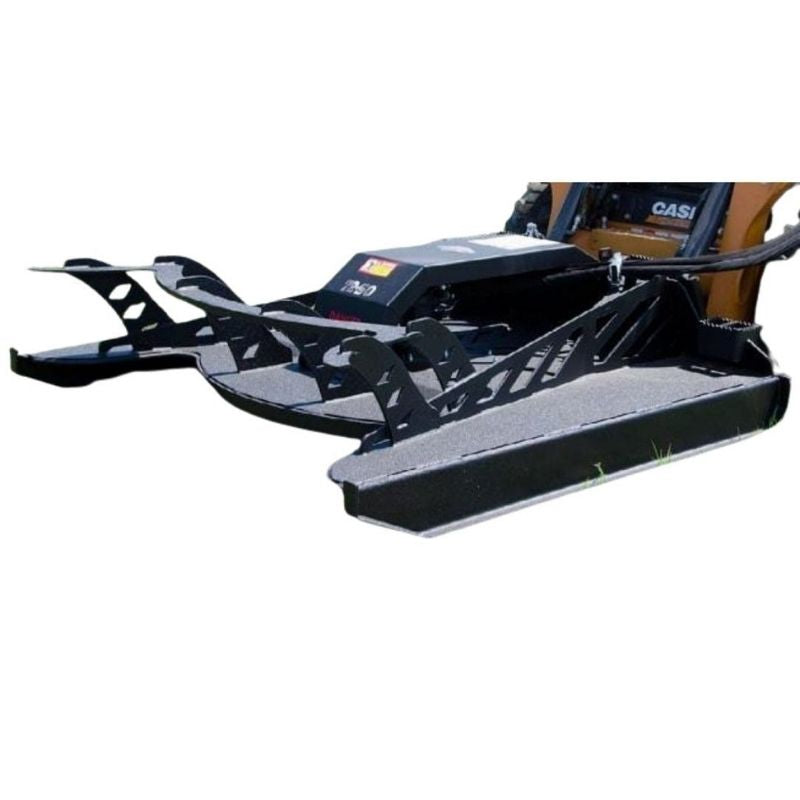

This Brush Cutter from Top Dogs is created for taking down small trees, brush, and mowing fields. The attachment is small enough to get into tight and hard areas to get at with the larger tractors. Each blade is 1/2″ thick by 4 feet long. Made in the USA.

FEATURES

  • Blade Carrier: Laser Cut Plate
  • Blade Rotation: Counter Clockwise
  • Cutting Capacity: Up to 3 1/2”
  • Drive: Eskridge
  • Motor: 6.1 cu in
  • Hydraulic Couplers: Flat Face 1/2” Body – ISO16028
  • Hydraulic Hoses :3/4”
  • PSI Max: 3,000 PSI
  • Wear Bars: 3/8” Thick – Welded on
  • Deck Thickness: 1/4”
  •  High Flow Options Available (Please Call For Pricing)

SPECIFICATIONS

Model 60″ 66″ 72″ 78″
Overall Width: 64” 70” 75.5” 85”
Overall Length: 74” 82” 88” 96”
Blades: 5/8” x 5” and 2½” Drop – 19.25” hole to tip 5/8” x 5” and 2½” Drop – 19.25” hole to tip 5/8” x 5” and 2½” Drop – 25.25” hole to tip 5/8” x 5” and 2½” Drop – 25.25” hole to tip
Bolts: BB100A BB100A BB100A BB100A
Blade Carrier: 3/4” T1, 27” Diameter 3/4” T1, 32” Diameter 3/4” T1, 27” Diameter 3/4” T1, 35¼” Diameter
Weight: 950 Lbs 1120 Lbs 1220Lbs 1585Lbs
Blade Tip Speed: Min @ 15 GPM (8.547 FPM) Max @ 25 GPM (14244 FPM ) Min @ 15 GPM (9587 FPM) Max @ 25 GPM (15978 FPM ) Min @ 15 GPM (8482 FPM) Max @ 25 GPM (14136 FPM ) Min @ 15 GPM (11594 FPM) Max @ 25 GPM (19323 FPM )
