Fork Mounted Spreader Bar

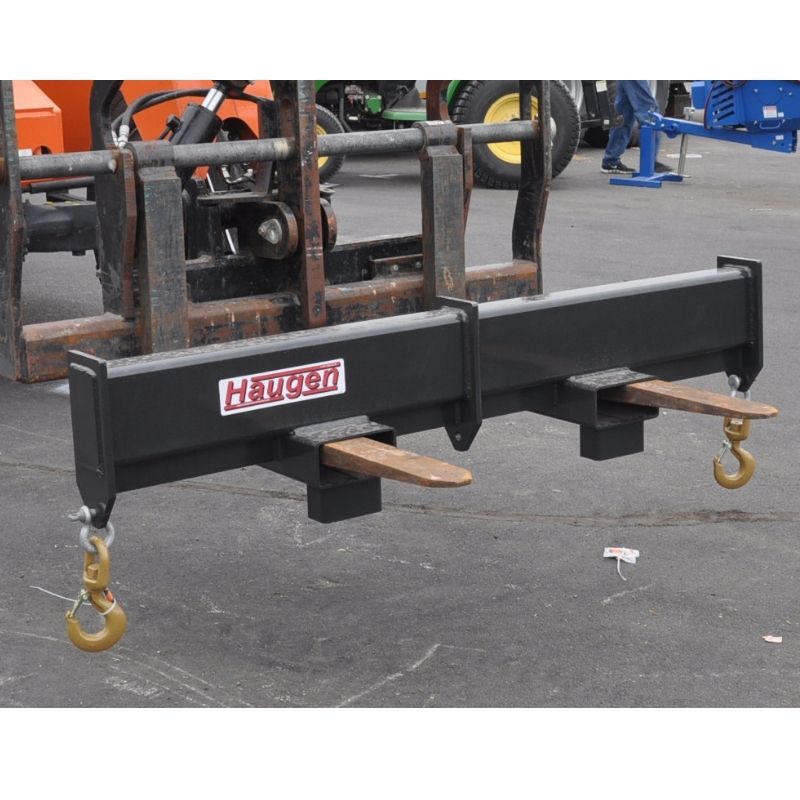

This Rigid Spreader Bar from Haugen is built to lift to 10,000 lbs with ease and accuracy. This Spreader Bar with make your next job quicker, easier and keep you Violation free. The heavy-duty construction helps this rigid spreader bar become durable and dependable for the years to come. Available in three lengths for any job 72”, 96” and 144”. Each spreader bar comes with two five-ton swivel hooks with a choice to add a third if required.
The large fork pockets can accommodate tines up to 3.5” by 7.5” tines that are secured to the heel of the forks with safety pins. The heavy-duty construction is built to meet and exceed OSHA and ANSI requirements. The chart below shows the capacity and the empty weight for your reference. Both the center position and outside positions have the same load rating at 10,000 pounds.
"Think Quality - Think Safety - Think Haugen”
FEATURES
- Equipped with 2 five (5) ton swivel hooks
- Center Position is rated for 10,000 lbs with a single hook
- Outside positions combined load rated at 10,000 lbs capacity
- Fits fork tines 3.5" to 7.5”
- Powder-coated
- Built with Heavy Duty Construction
- Optional third hook available
- 1-year warranty
- Made in the USA
SPECIFICATIONS
