Mini Trencher Attachment 615 Series | Bradco

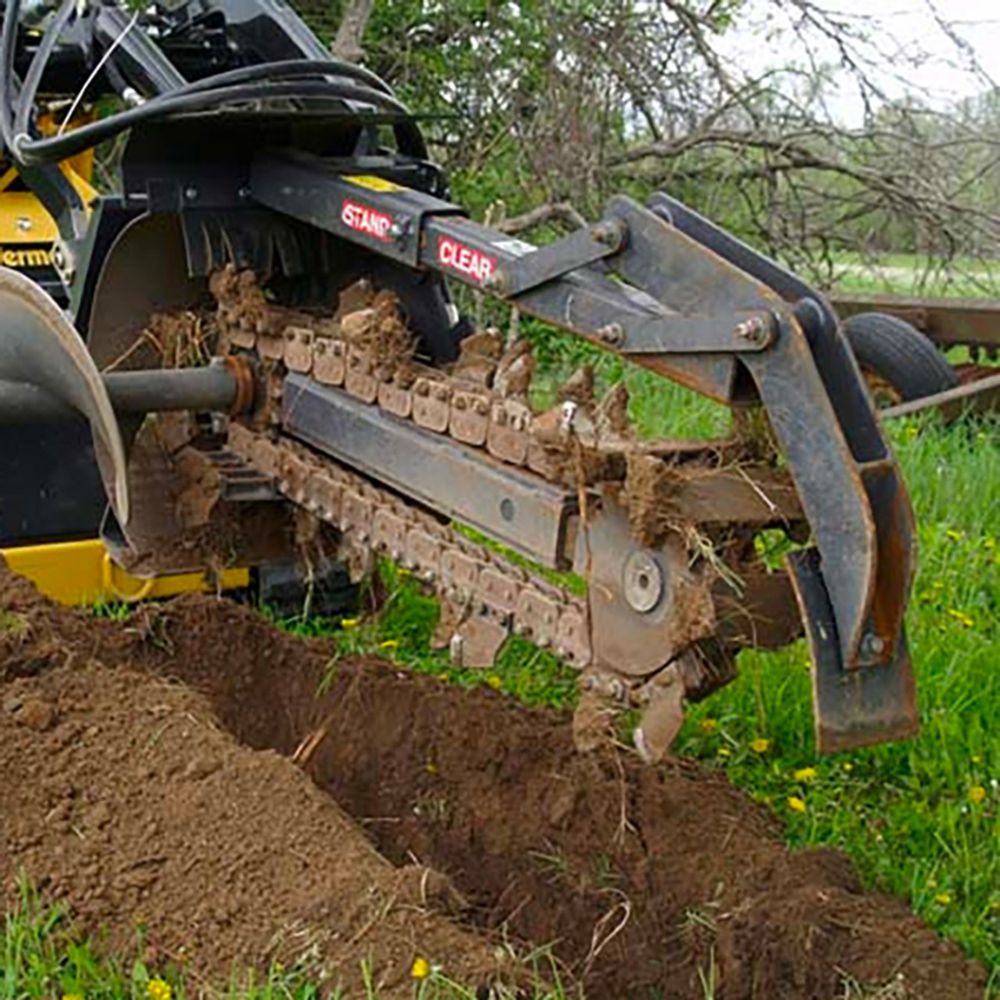

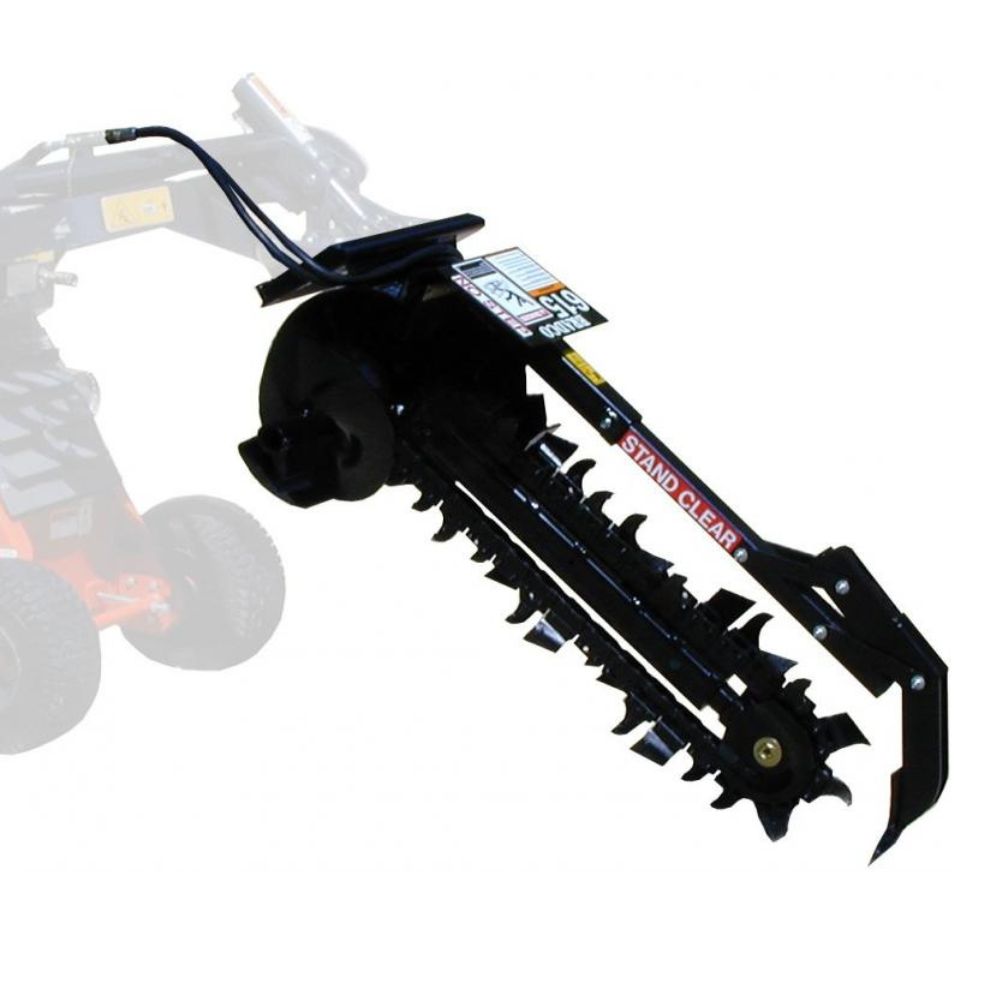

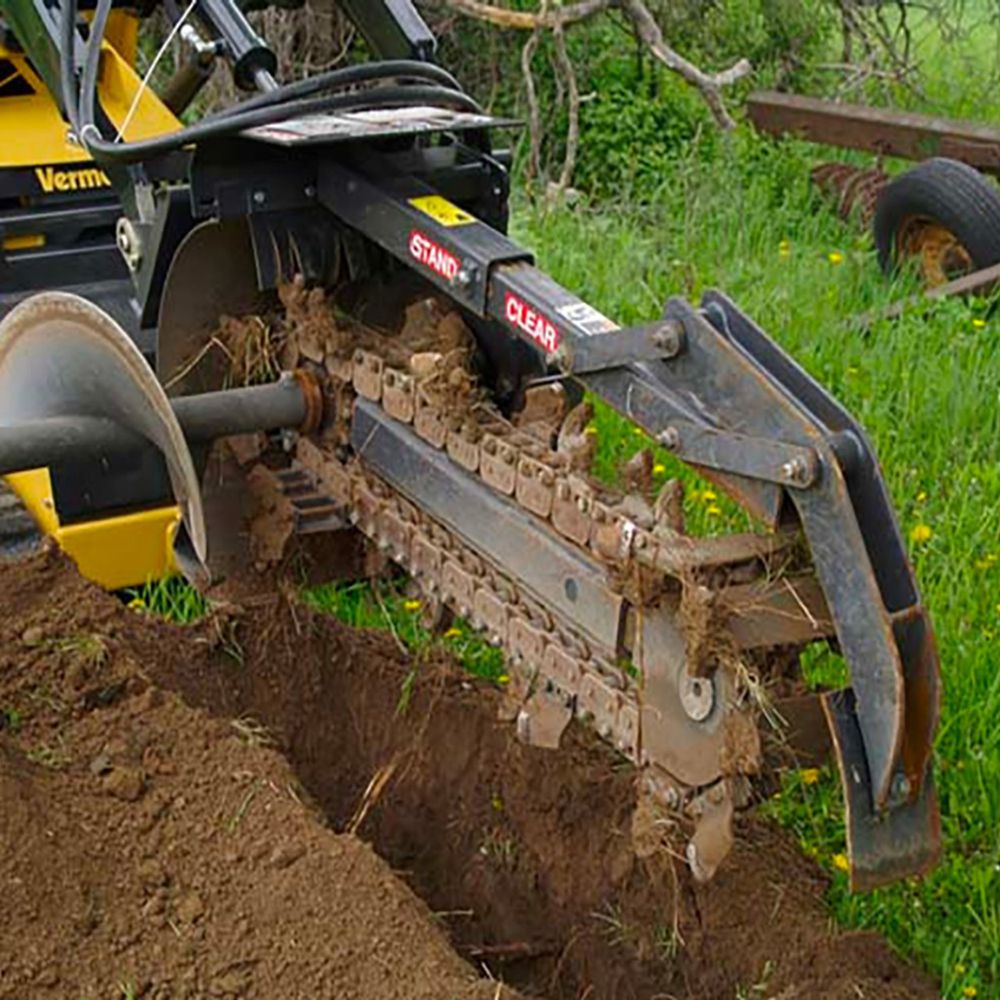

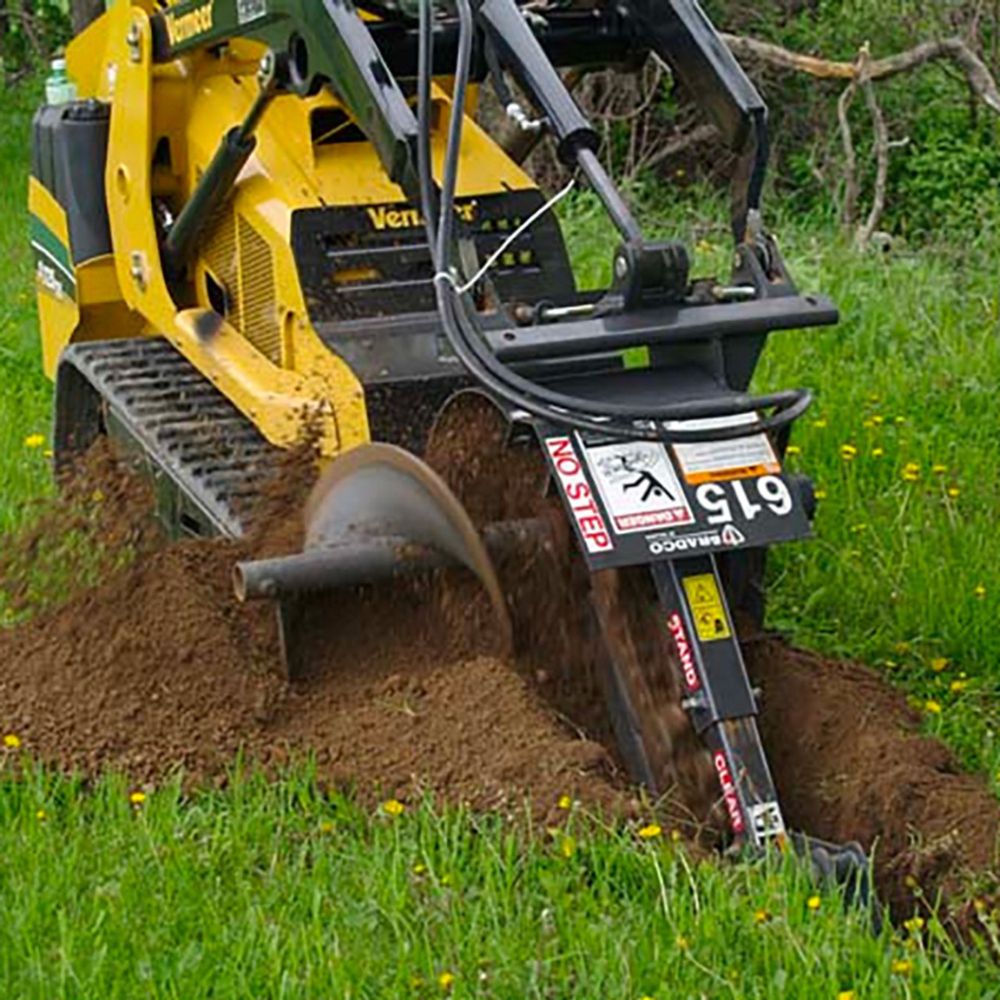

Bradco 615 Model Mini Trencher

The Bradco 615 Trenchers are designed to provide versatile and efficient trenching solutions with digging depths up to 36". These trenchers are equipped with a heavy-duty boom and crumber, making them suitable for a wide range of applications.

Features

  • Multiple Motor Options: Two motor options are available to match the flow requirements of various skid steer loaders.
  • Fixed Length Booms: Features spring-loaded, self-adjusting idlers with full rock guards for enhanced durability.
  • Versatile Tooth Pattern: Equipped with a 50,000 lb 1.65" anti-back flex-chain, offering versatility to support various soil types and conditions.
  • Efficient Spoil Management: Tight fit with single-side spoil augering for clean and efficient trenching.
  • Cost-Effective Solution: Replaces the need for dedicated machines at a fraction of the cost.
  • Offset Auger and Side Shielding: 615F model features an offset auger and side shielding for trenching next to footing form boards.
  • Warranty: Comes with a two-year limited warranty for peace of mind.



Soil Type 1: General Purpose

Tooth Configuration: "TES" - Cup-Style Tooth at Every Station

A tooth configuration that is for generally good, normal digging conditions. Light to moderately compacted soils with generally balanced sand and loam content. Also works well in soils with some loose gravel.

*In soils with higher clay content, recommend to remove up to 50% of teeth to reduce sticking and gumming.

Soil Type 2: Compacted Soils

Tooth Configuration: "70/30" - Combination 70% Shark Teeth, 30% Cup-Style Teeth

Configured for compacted soils, lightly frozen ground, baked hard clay, shale, and rocky soils. Shark teeth provide a cutting action while cup teeth remove debris from the trench.


SIZE

Model: 36" Depth | 6-10 GPM
Tooth Configuration: General Purpose

QUANTITY

  • FAST
    SHIPPING!

  • GREAT PRICES

  • BEST QUALITY
    ATTACHMENTS

DESCRIPTION-

Bradco 615 Model Mini Trencher

The Bradco 615 Trenchers are designed to provide versatile and efficient trenching solutions with digging depths up to 36". These trenchers are equipped with a heavy-duty boom and crumber, making them suitable for a wide range of applications.

Features

  • Multiple Motor Options: Two motor options are available to match the flow requirements of various skid steer loaders.
  • Fixed Length Booms: Features spring-loaded, self-adjusting idlers with full rock guards for enhanced durability.
  • Versatile Tooth Pattern: Equipped with a 50,000 lb 1.65" anti-back flex-chain, offering versatility to support various soil types and conditions.
  • Efficient Spoil Management: Tight fit with single-side spoil augering for clean and efficient trenching.
  • Cost-Effective Solution: Replaces the need for dedicated machines at a fraction of the cost.
  • Offset Auger and Side Shielding: 615F model features an offset auger and side shielding for trenching next to footing form boards.
  • Warranty: Comes with a two-year limited warranty for peace of mind.



Soil Type 1: General Purpose

Tooth Configuration: "TES" - Cup-Style Tooth at Every Station

A tooth configuration that is for generally good, normal digging conditions. Light to moderately compacted soils with generally balanced sand and loam content. Also works well in soils with some loose gravel.

*In soils with higher clay content, recommend to remove up to 50% of teeth to reduce sticking and gumming.

Soil Type 2: Compacted Soils

Tooth Configuration: "70/30" - Combination 70% Shark Teeth, 30% Cup-Style Teeth

Configured for compacted soils, lightly frozen ground, baked hard clay, shale, and rocky soils. Shark teeth provide a cutting action while cup teeth remove debris from the trench.
