Manure Fork Grapple | Top Dog Attachments

Option

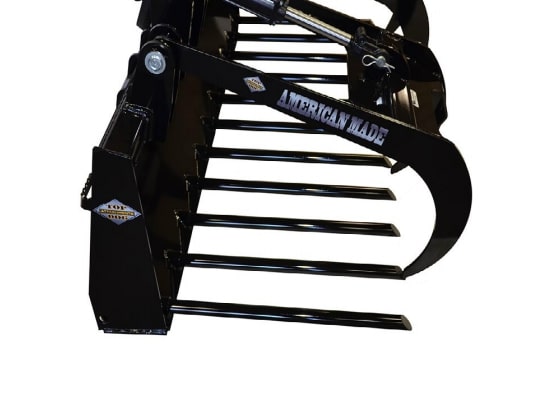

This Manure Fork Grapple from Top Dog Attachments is designed to be used for manure, hay, and straw clean-up.

It can also be used for light brush clearing. It comes with a large round-tine design making it easy to wash down after use.

FEATURES

  • Available in 3 variants
  • Tines are replaceable
  • Made in the USA

SPECIFICATIONS

Description: 66″ Manure Grapple 72″ Manure Grapple 78″ Manure Grapple
Overall Width: 66” 72” 78”
Overall Height-Closed: 33” 33” 33”
Overall Height-Open: 54 1/2” 54 1/2” 54 1/2”
Overall Depth: 45 1/4″ 45 1/4″ 45 1/4″
Grapple Openings: 45 1/2″ 45 1/2″ 45 1/2″
Depth of Bucket: 34 1/2 “ 34 1/2 “ 34 1/2 “
Tines (replaceable): 1-1/2″ 1144 Steel 1-1/2″ 1144 Steel 1-1/2″ 1144 Steel
Top Tube: 3 x 3 x 187 3 x 3 x 187 3 x 3 x 187
Main Body: 1/4″ A36 1/4″ A36 1/4″ A36
Grapple Arms: 1/2″ Gusseted 1/2″ Gusseted 1/2″ Gusseted
Cylinders: 2″ Bore 2″ Bore 2″ Bore
Weight: 812 LBS 837 LBS 812 LBS
