Safely lift, load & tow with your forklift

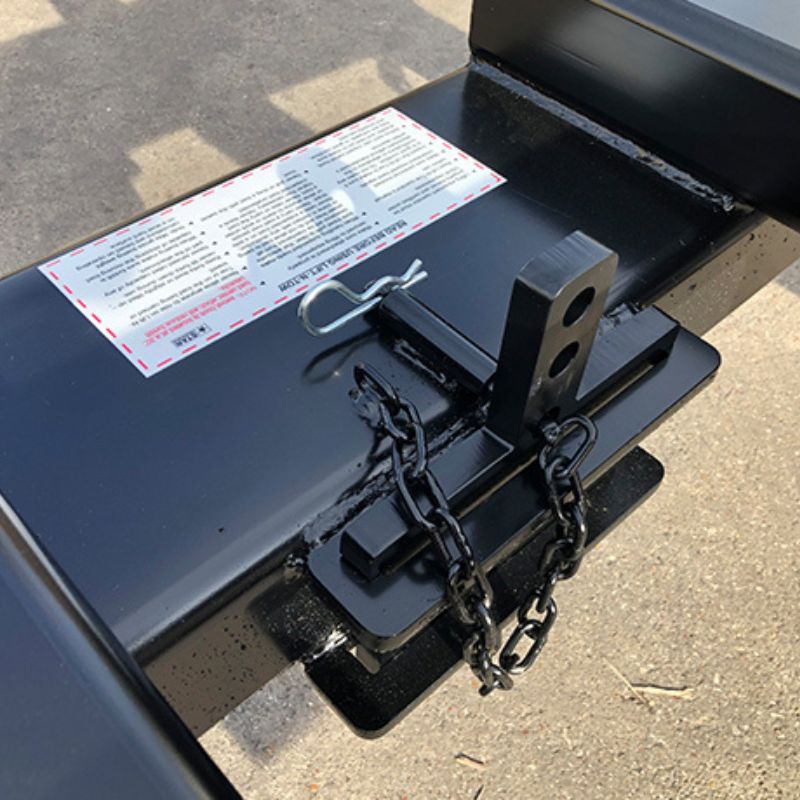

Don’t jeopardize an OSHA citation. This Lift-N-Tow from Star Industries is the easy and safe way to lift, load, and tow by your forklift. Just slip over the forks and swap between the pintle, ball, and combination hitches to lift and tow all kinds of loads weighing up to a bulky 10,000 lbs for the standard Lift-N-Tow, a massive 16,000 lbs for the Super Duty Lift-N-Tow, and 30,000 lb with the Navy Lift-N-Tow.

Hitches

A hitch is a must for the Lift n Tow. Hitches sold separately - see tab below for more details.

Adapter with 2" Ball Model 1391

Adapter with Pintle Hitch Model 1392/1394PH

Adapter with Combo Hitch Model 1393/1394CH

• Lift-N-Tow

  Model		Accepts forks	Max Lift Capacity on Swivel Hook	Max Lift Capacity on Receiver Jib	Max Gross Towing Weight	Weight (w/o Hitch Adaptor)	Fork Pocket Size	Center-to-center of Fork Opening	Pocket Ends
  Lift-N-Tow	1390B	6” w x 2 ¾” thick	4,000 lbs	2,000 lbs	10,000 lbs	220 lbs	48” long x 6 ¾ x 3” ID	13 ¼”	Open
  Super Duty Lift-N-Tow	1395B	8” w x 2 ¾” thick	10,000 lbs	3,000 lbs	16,000 lbs	400 lbs	48” long x 8 ¾ x 3” ID	34 ¾”	Open
  Navy Lift-N-Tow	1396C	8″ w x 2 ¾” thick	12,000 lb	6,000 lbs	30,000 lbs	505 lbs	48” long x 8 ¾ x 3” ID	34 ¾”	Open

  Lift-N-Tow & Hitches sold separately.



  Hitch Adapters

  Model	For Lift-N-Tow Model	Style of Adapter	Max Vertical Lift	Max Gross Towing Weight	Horizontal Center of Gravity	Weight (Adapter Only)
  1391	1390B	2” Ball	600 lbs	10,000 lbs	28”	10 lbs
  1392	1390B	Pintle	2,000 lbs	10,000 lbs	29”	15 lbs
  1393	1390B	Combo	2,000 lbs	10,000 lbs	30”	20 lbs
  1394PH	1395B	Pintle	3,000 lbs	16,000 lbs	29”	21 lbs
  1394CH	1395B	Combo	3,000 lbs	16,000 lbs	30”	25 lbs

  Note: Pintle Hitch included with model 1396C Navy Lift-N-Tow
