Heavy Duty Low Profile Bucket with Grapple | Top Dog Attachments

Options

This low-profile bucket can be helpful in many different applications.

This Heavy Duty Low Profile Bucket from Top Dog Attachments is perfect for moving materials. It is also ideal for digging and grading dirt or gravel.

FEATURES

  • Available in 6 variations
  • 3,000 PSI Max
  • Proudly made in the USA

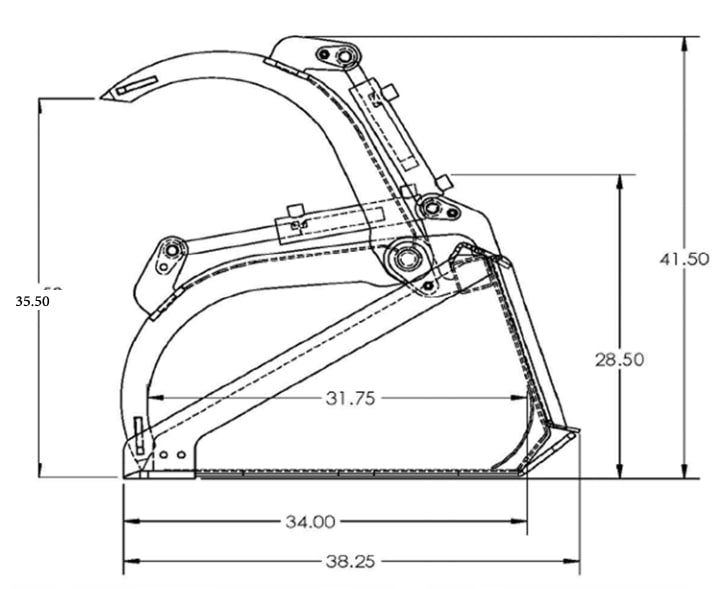

SPECIFICATIONS

Overall Width 60” 68” 72” 78" 80” 84”
Overall Height - Closed 28½ 28½ 28½ 28½ 28½ 28½
Overall Depth 38¼ 38¼ 38¼ 38¼ 38¼ 38¼
Grapple Opening 35½” 35½” 35½” 35½” 35½” 35½”
Depth of Bucket 34 34 34 34 34 34
Main Body Thickness 3/16” 3/16” 3/16” 3/16” 3/16” 3/16”
Side Cutting Edge 3/8” Grade 50 3/8” Grade 50 3/8” Grade 50 3/8” Grade 50 3/8” Grade 50 3/8” Grade 50
Wear Bars 1/2” Grade 50 - 10” Wide 1/2” Grade 50 - 10” Wide 1/2” Grade 50 - 10” Wide 1/2” Grade 50 - 10” Wide 1/2” Grade 50 - 10” Wide 1/2” Grade 50 - 10” Wide
Mounting Plate 5/16” HR Steel 5/16” HR Steel 5/16” HR Steel 5/16” HR Steel 5/16” HR Steel 5/16” HR Steel
Cutting Edge 3/4” x 6” 3/4” x 6” 3/4” x 6” 3/4” x 6” 3/4” x 6” 3/4” x 6”
Grapple Arms 1/2” Grade 50 - Laser Cut 1/2” Grade 50 - Laser Cut 1/2” Grade 50 - Laser Cut 1/2” Grade 50 - Laser Cut 1/2” Grade 50 - Laser Cut 1/2” Grade 50 - Laser Cut
Cylinders 2” x 8” Welded 2” x 8” Welded 2” x 8” Welded 2” x 8” Welded 2” x 8” Welded 2” x 8” Welded
Hydraulic Couplers Flat Face Flat Face Flat Face Flat Face Flat Face Flat Face
Hydraulic Hoses 3/8” 3/8” 3/8” 3/8” 3/8” 3/8”
PSI Max 3,000 PSI 3,000 PSI 3,000 PSI 3,000 PSI 3,000 PSI 3,000 PSI
Pivot Points Grease Zerks Grease Zerks Grease Zerks Grease Zerks Grease Zerks Grease Zerks
Struck Capacity 13.2 cu. ft. 15 cu. ft. 15.9 cu. ft. 17.5 cu. ft. 17.75 cu. ft. 18.5 cu. ft.
Heaped Capacity 15.8 cu. ft. 18 cu. ft. 19 cu. ft. 20.5 cu. ft. 20.12 cu. ft. 22.25 cu. ft.
Weight 827 lbs 867 lbs 872 lbs 917 lbs 952 lbs 972 lbs
Overall Height - Open 41½ 41½ 41½ 41½ 41½ 41½
