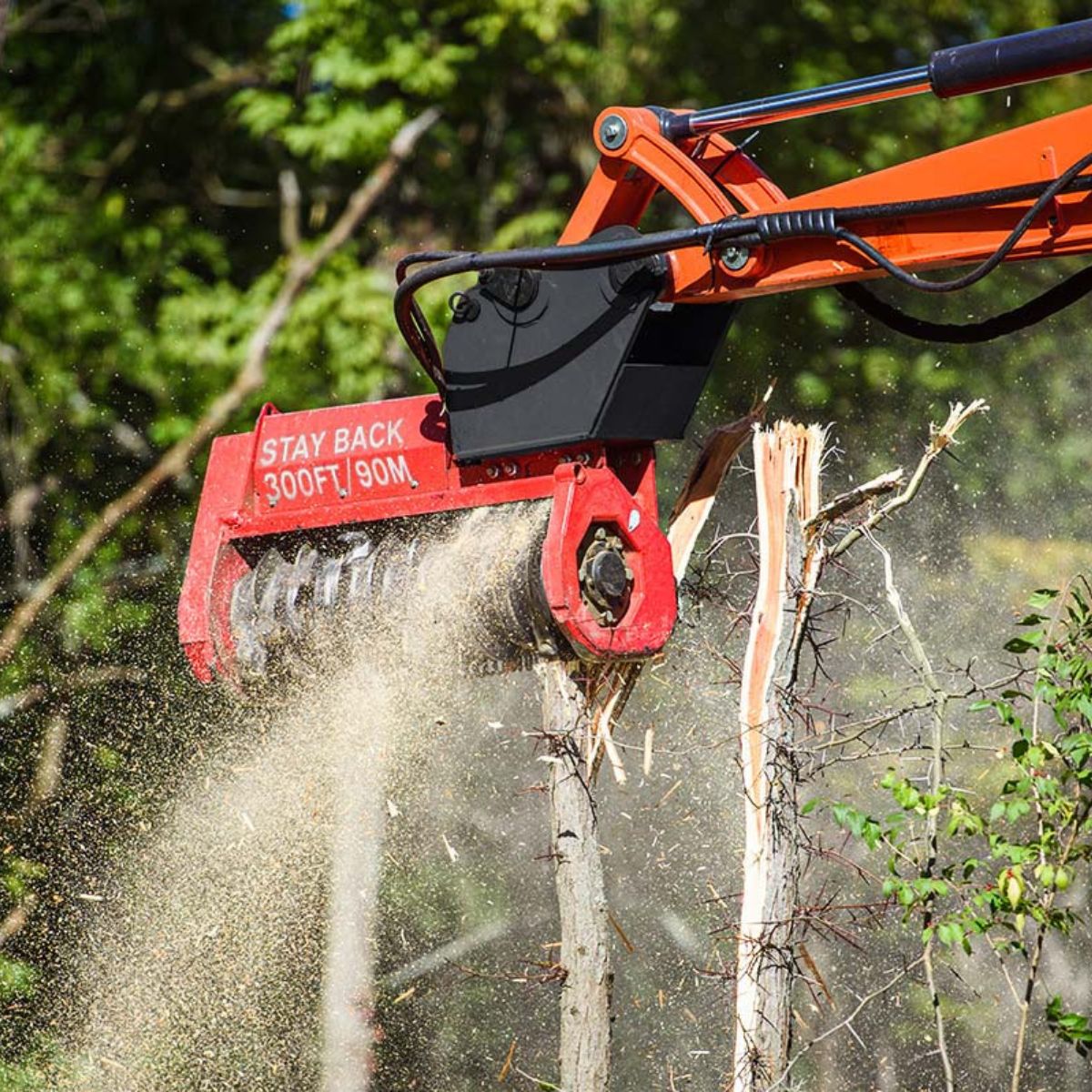

• excavator-with-the-fecon-forestry-mulcher-attachment-grinding-trees-in-the-forest

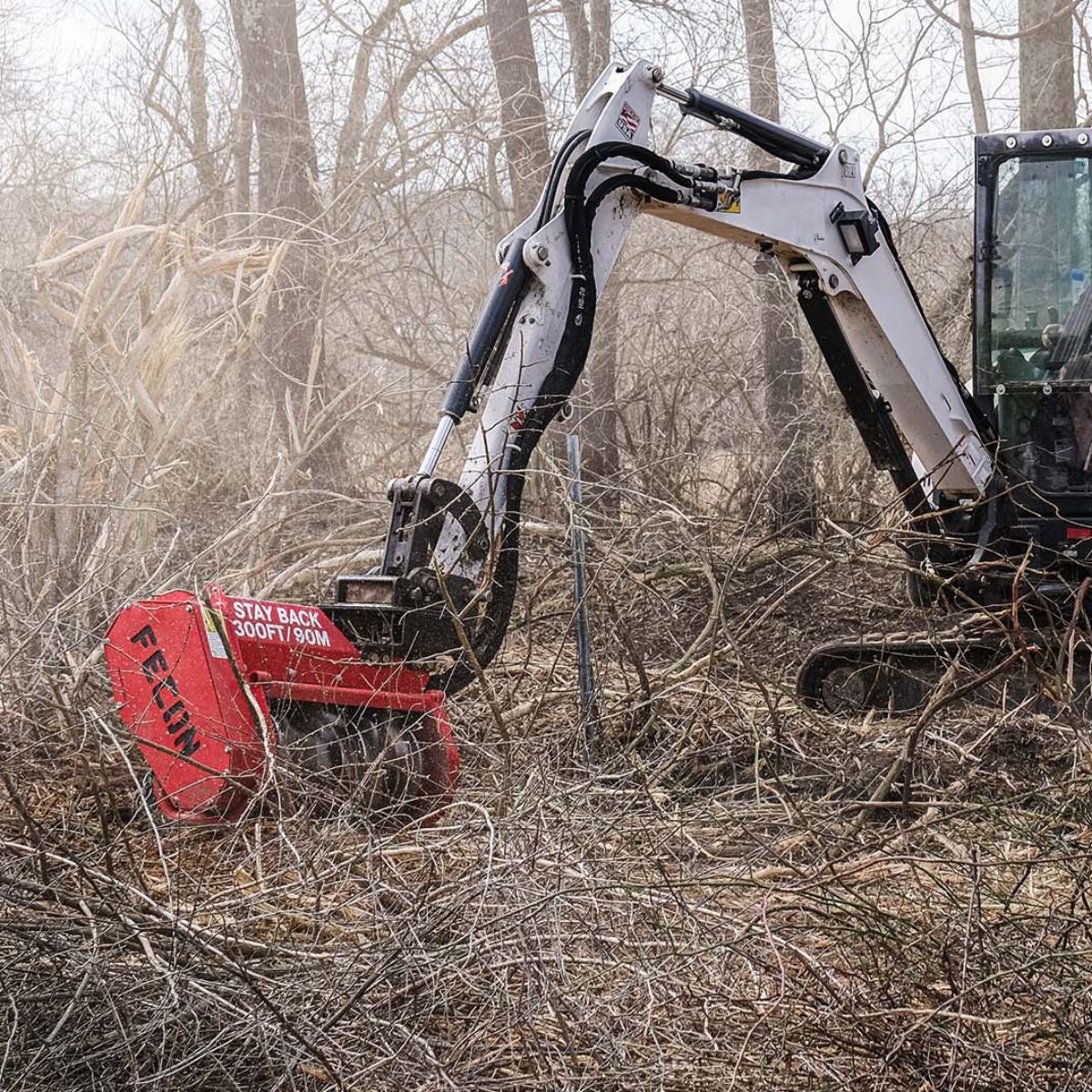

  • bobcat-mini-excavator-with-the-fecon-mulching-attachment

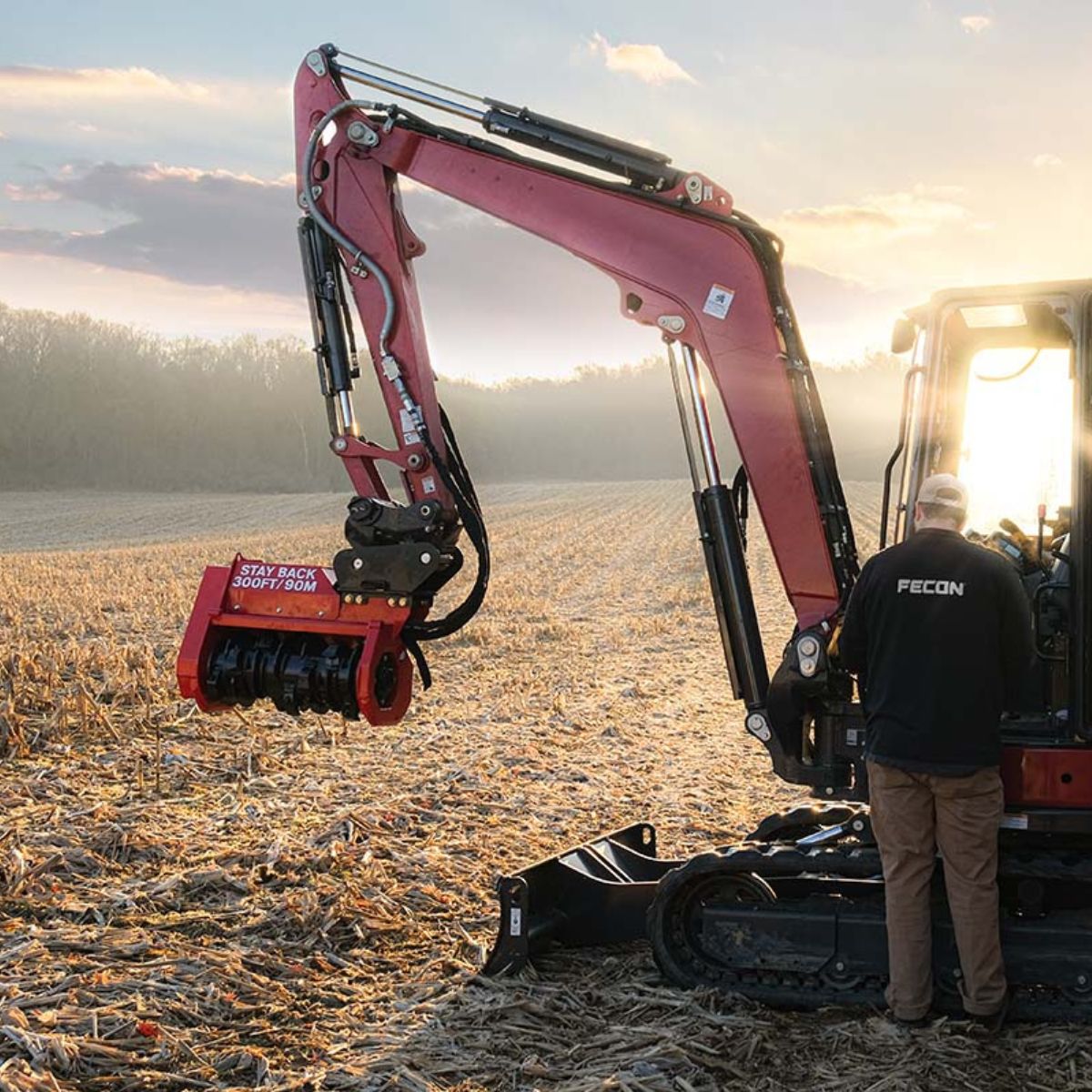

  • Fecon mini excavator mulching head attached to a Kubota excavator in a field at sunrise

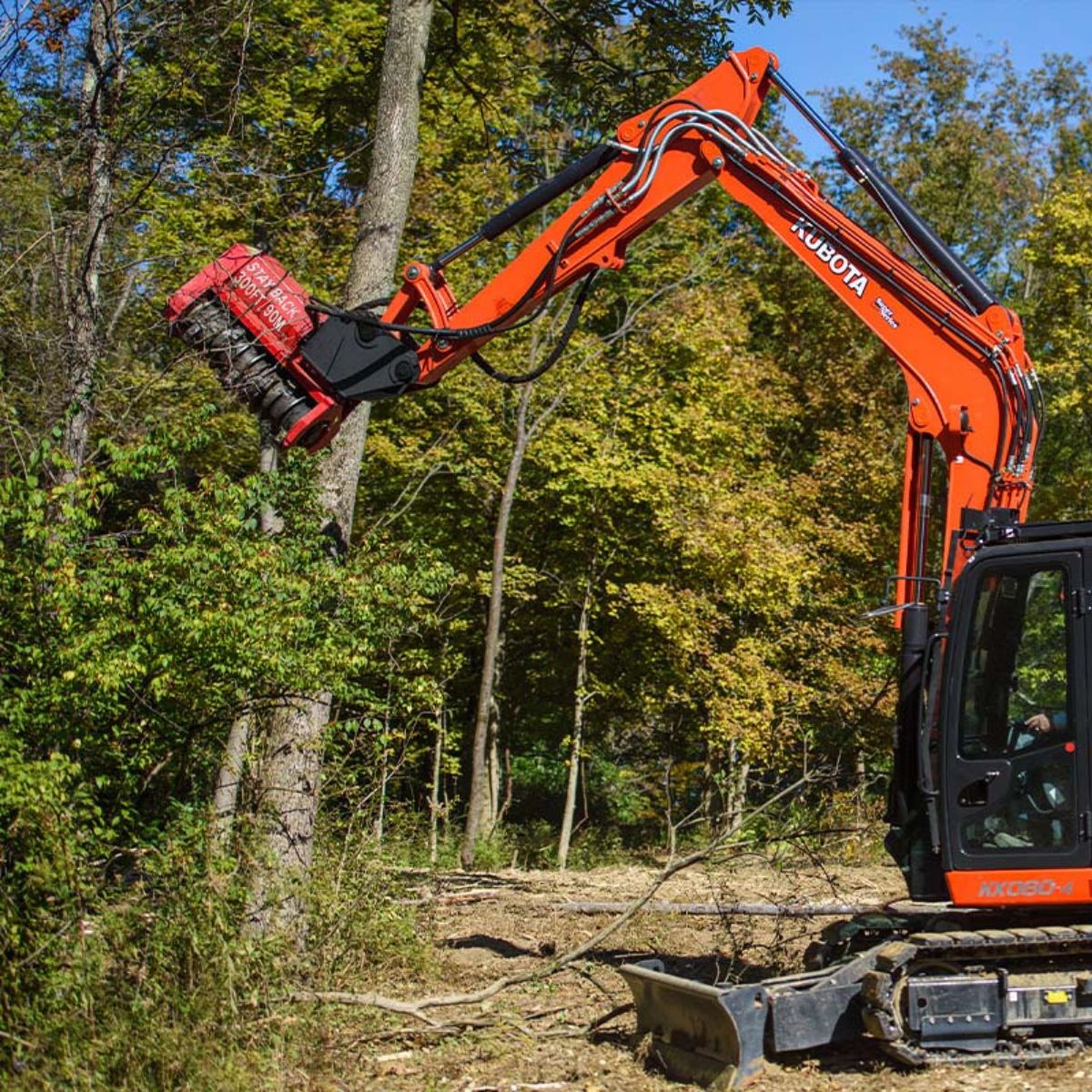

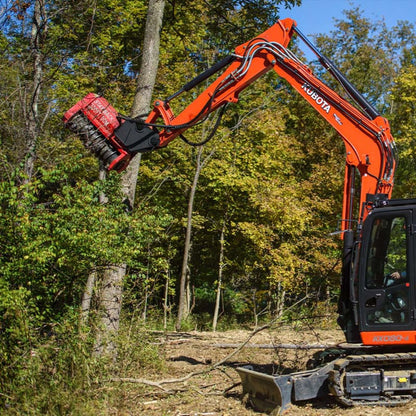

  • Kubota mini excavator using an FMX series drum mulcher attachment to grind a tree in a wooded area
1 4

Fecon

Fecon FMX Series Excavator Mulcher

Fecon FMX Series Excavator Mulcher

$24,313.00 USD
$24,313.00 USD
Sale Sold out
Shipping calculated at checkout.
Cutting Width
View full details

Description

fecon-logo


 Fecon Mini Excavator  Forestry Mulcher  3.5 -10 TON

The Fecon FMX Series is a mulcher built for mini excavators from 3.5 to 10 tons, running 12-40 gpm. It uses the same split ring rotor and knife tooling as the rest of the Bull Hog line, in a lighter build that mounts on backhoes and side-arm booms without giving up Fecon's heavy-duty construction.


It's available in three widths — 28" (FMX28), 36" (FMX36), and 50" (FMX50) — so you can match the head to your excavator's size and
reach.


FMX Series Features


Ideal Choice For Your Excavator

The FMX uses a low-maintenance design, with optional mounts available to fit your machine. Variable displacement hydraulic motors adjust rotor speed and torque automatically, keeping production efficient whether you're processing small or large material.

FMX rotor


Fecon Mini Excavator Mulcher FMX28

The FMX28 is sized for 3.5-10 ton excavators and is a common choice for owner-operators, rental fleets, and right-of-way maintenance crews who need a compact, durable head without stepping up to a larger machine.

Features

  • 12-40 GPM flow range
  • 28", 36", and 50" cutting widths
  • 750-1,050 lbs depending on model
  • Efficiently mulches up to 5" material
  • Variable displacement motor standard
  • Excavator mount included
  • Fecon standard warranty — 12 months / 1,000 hours
  • Case drain required to protect the carrier machine's hydraulic system
  • Made in the USA


Rotor and Tooling

The FMX rotor stands out as a split ring rotor equipped with knife tools tailored for efficient mulching while maintaining elevated rotor RPMs. It offers two tool options to suit varied material needs.

The standard Cubit Knife, included with the FMX rotor, boasts a double-sided design that can be easily flipped to unveil a fresh cutting edge. With sharpened edges, it ensures quicker cutting and delivers a finer, more visually pleasing end product. Its tapered tool body facilitates efficient chip material flow.

For a more versatile option, there's the Cubit carbide, featuring a sturdy carbide body with blunt edges. This variant excels in shredding material and engaging with the ground.





*Hoses not included. We recommend obtaining them at a local hydraulic shop to ensure the perfect length for your machine.
*Case drain required to protect carrier machines hydraulic system.

FMX in Action!

Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
contact-us-at-skidsteersdirect.com

Need Assistance?

Have a question about one of our products?


Dying to know all the details about your favourite find or how you can get your hands on our attachments?
Need assistance picking the right attachment for you?

CONTACT US
Frequently Asked Questions
What size excavator do I need for the Fecon FMX mulcher?

The FMX Series is built for 3.5 to 10 ton excavators running 12-40 gpm. The FMX28 fits smaller machines at 750 lbs, while the FMX36 and FMX50 are sized for the
upper end of that range at 850 and 1,050 lbs. Match the model to your excavator's lift capacity and hydraulic flow, and call us if you're unsure which width fits your
machine.


What's the difference between the FMX28, FMX36, and FMX50?

All three share the same 12-40 gpm flow range and mounting approach, and the difference is cutting width and weight: 28" at 750 lbs, 36" at 850 lbs, and 50" at 1,050
lbs. A wider head clears more ground per pass but needs more lift capacity, so choose based on your excavator's rated capacity and the size of the job.

Can the FMX mulcher mount on a backhoe or side-arm boom?

Yes. The FMX is built with a lighter frame specifically so it can mount on backhoes and side-arm booms without sacrificing Fecon's standard construction quality. That
makes it a practical option for right-of-way crews and municipalities running boom-mounted equipment rather than a standard excavator.

What tooling comes standard on the Fecon FMX?

The FMX ships with the Cubit Knife as standard tooling — a double-sided tool you can flip for a fresh edge, tapered for efficient chip flow. A carbide option, the Cubit
carbide, is also available with a sturdier, blunt-edged body for tougher material and ground engagement.
