Top Dog Attachments

Bale Grapple | Top Dog Attachments

Options

This Bale Grapple from Top Dog Attachments is designed to effectively handle and transport large, loose round bales.

It can also handle scrap, brush, and many other jobs suited to a skeleton grapple. This attachment helps you get jobs done more manageable and efficiently.


FEATURES

  • Choose in 3 variants from: 72″, 79″, 82″
  • Available as Grapple only
  • PSI Max: 3,000 PSI
  • Tines are Grade 50 at 3/8″
  • Proundly made in the USA

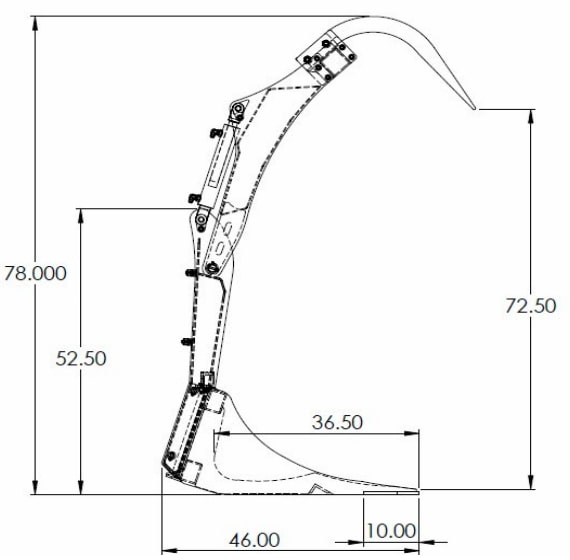

SPECIFICATIONS

Width: 72″ 79″ 82″
Overall Height – Closed: 55″ 55″ 55″
Overall Height – Open: 78″ 78″ 78″
Overall Depth: 60″ 60″ 60″
Grapple Opening: 73″ 73″ 73″
Depth of bucket: 40″ 40″ 40″
Tines: 3/8″ Grade 50 3/8″ Grade 50 3/8″ Grade 50
Cutting Edge: 1/2″ x 10″ Grade 50 1/2″ x 10″ Grade 50 1/2″ x 10″ Grade 50
Top & Bottom Tube: 3″ x 4″ x 1/4″ 3″ x 4″ x 1/4″ 3″ x 4″ x 1/4″
Grapple Tines: 5/8″ T-1 Laser Cut 5/8″ T-1 Laser Cut 5/8″ T-1 Laser Cut
Hydraulic Hoses: 3/8″ 3/8″ 3/8″
Hydraulic Couplers: Flat Face Flat Face Flat Face
Cylinder: 2 1/2″x 12″ Welded Clevis 2 1/2″x 12″ Welded Clevis 2 1/2″x 12″ Welded Clevis
PSI Max: 3,000 PSI 3,000 PSI 3,000 PSI
Pivot Points: Greece Zerks Greece Zerks Greece Zerks
Weight: 1204 LBS 1289 LBS 1342 LBS

Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax.
