Auger Drive Extreme Duty Series 2 | Blue Diamond

Model

Auger – Extreme Duty Series 2

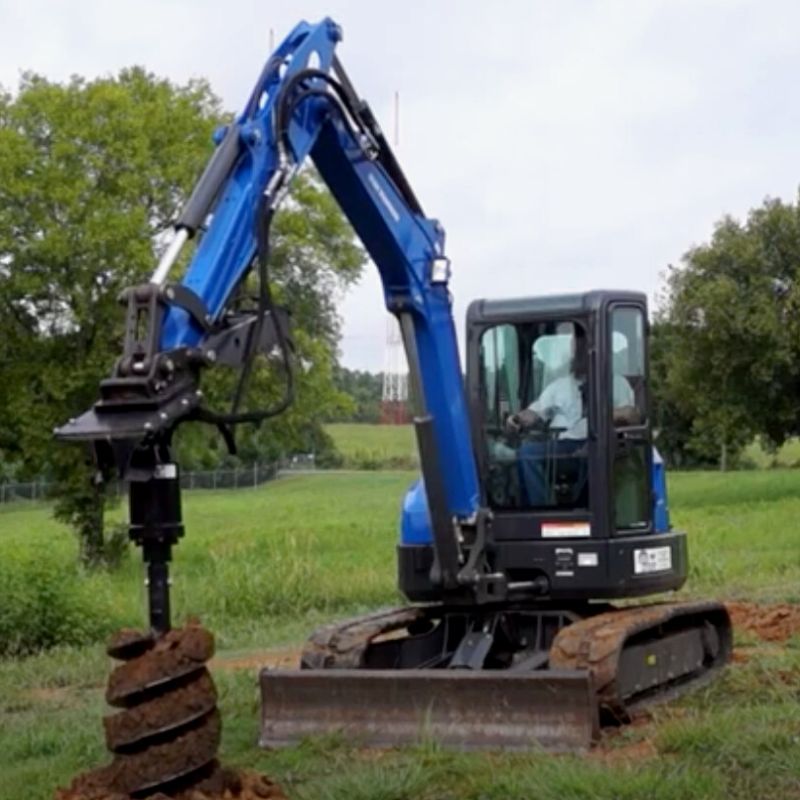

This Extreme Duty Series 2 Auger from Blue Diamnd offers ultimate performance, quality, and cost-effectiveness for Excavators. Made with only the highest-grade materials and innovation, this design allows the gearbox to go down the hole, maximizing drilling depth while eliminating downtime. The drives are perfect for drilling and augering in most ground conditions with 2 piece shaft design ensuring maximum side load ratings.
It comes with a 5-year gearbox warranty, 3-year motor warranty, and lifetime shaft pull-out warranty.

Features Include:

  • Compact high torque manufactured gearbox
  • 2 piece shaft design ensuring maximum side load ratings
  • 5-year gearbox warranty, 3-year motor warranty, and lifetime shaft pull-out warranty
Model EX1 EX2 EX3 EX4 EX4HF
Torque ft-lbs @ 3000 Ps 1467 2254 2829 3275 3583
Max Torque ft-lbs 3500 Psi 1712 2630 3300 3821 4180
Recommended Flow (GPM) 6-16 10-26 10-30 10-30 10-36
Peak Efficiency (GPM) 8-11 12-16 17-20 19-23 21-26
Motor Type Eaton Eaton Eaton Eaton Eaton
Max Pressure – Do Not Exceed 3500 psi @ 16 gpm 3500 psi @ 16 gpm 3500 psi @ 16 gpm 3500 psi @ 16 gpm 3500 psi @ 27 gpm
Max Flow – Do Not Exceed 30 gpm @ 1800 psi 30 gpm @ 1800 psi 30 gpm @ 1800 psi 30 gpm @ 1800 psi 42 gpm @ 3100 psi
Max HP 33 33 33 33 55
Pressure Relief Valve N/A N/A N/A N/A Included
Standard Output Shaft 2″ Hex 2″ Hex 2″ Hex 2″ Hex 2″ Hex
Max Drilling Diameter Clay/Shale 12″ 24” 24” 24” 24”
Max Drilling Diameter Earth 24″ 30” 30” 30” 40”
Weight (lbs) 101 123 123 125 180
Overall Length (in) 24.5″ 25.9″ 25.9″ 25.9″ 29″
Diameter (in) 7.4″ 9.4″ 9.4″ 9.4″ 9.4″
