Fork Mounted Adjustable Spreader Bar - Haugen Attachments

$3,539.99 USD

Description

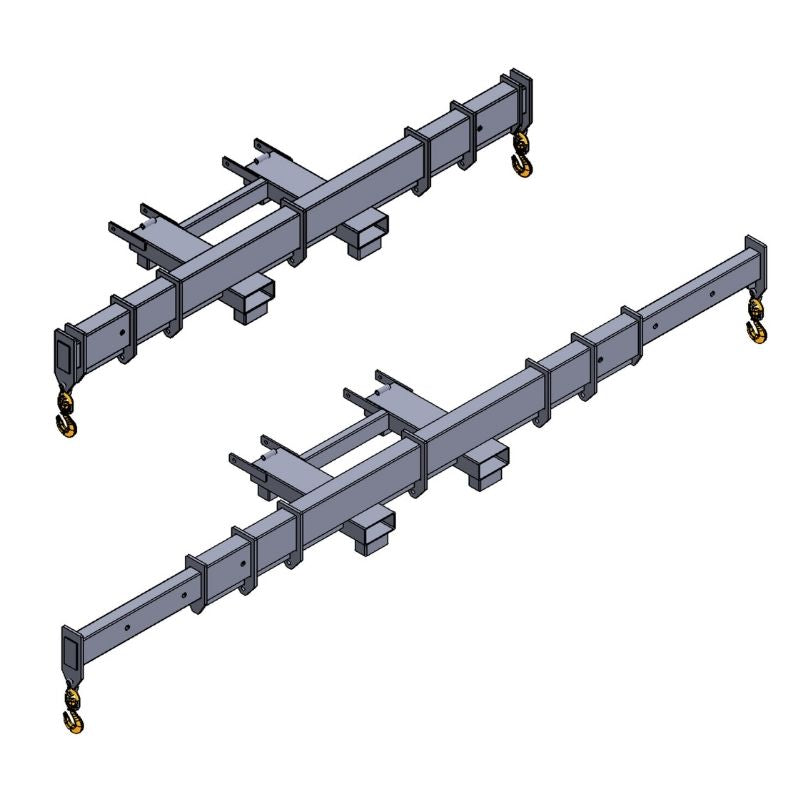

Fork Mounted Adjustable Spreader Bar

Haugen's fork-mounted adjustable spreader bar is a very popular attachment for forklifts and Telehandlers. They are engineer certified and meet and exceed all OSHA requirements. The spreader bar has a lift capacity of up to 10,000 pounds and with load charts placed on the attachment to make sure you're using it within limits.

The fork pockets can fit tines up to 3.5” by 7.5” and are securely held into place with safety pins. This Heavy-duty adjustable spreader bar range in size from 8'-12', 10'-15' and 13’-20'. The two 5 ton swivel hooks keep the load secure when in use. This attachment is made in the USA and is powder-coated throughout to fight off rust and corrosion. If you have any questions, please feel free to call.

Spreader Bar Features

The fork pockets hold the Spreader Bar at 24" on center
It comes equipped with two 5 ton swivel hooks
Fork Pockets fit tines up to 3.50" x 7.50" wide
Secured to Fork Tines with a saftey pin
Available sizes, 8' to 12' , 10' to 15' , and 13' to 20’
Made in the USA
1-year warranty

"Think Quality - Think Safety - Think Haugen"

Specifications

Model	Spread	Lifting Capacity	Weight
MASPR 812	Center Position - Single Point Load	10000 LBS	580 LBS
	Point Loads @ 65.375" spread position	5000 x 2 = 10000 LBS
	Point Loads @ 97.88" spread position	4000 x 2 = 8000 LBS
	Point Loads @ 121.88" spread position	3500 x 2 = 7000 LBS
	Point Loads @ 145.88" spread position	3000 x 2 = 6000 LBS

MASPR 1015	Center Position - Single Point Load	10000 LBS	685 LBS
	Point Loads @ 65.375" spread position	5000 x 2 = 10000 LBS
	Point Loads @ 89.00" spread position	5000 x 2 = 10000 LBS
	Point Loads @ 120.00" spread position	4000 x 2 = 8000 LBS
	Point Loads @ 150.00" spread position	3500 x 2 = 7000 LBS
	Point Loads @ 180.00" spread position	3000 x 2 = 6000 LBS

MASPR 1320	Center Position - Single Point Load	10000 LBS	875 LBS
	Point Loads @ 65.375" spread position	5000 x 2 = 10000 LBS
	Point Loads @ 110.00" spread position	4000 x 2 = 8000 LBS
	Point Loads @ 162.00" spread position	3500 x 2 = 7000 LBS
	Point Loads @ 201.00" spread position	3000 x 2 = 6000 LBS
	Point Loads @ 240.00" spread position	2250 x 2 = 4500 LBS
