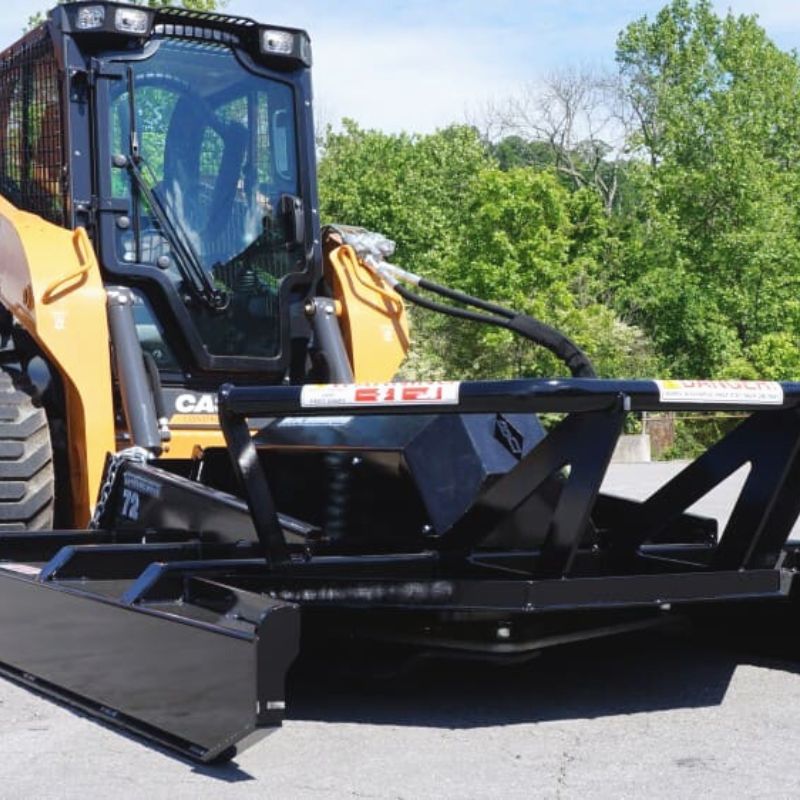

BRUSH CUTTER – EXTREME DUTY OPEN FRONT

The Blue Diamond Open Front Extreme Duty is the most popular brush cutter in the industry! Not only this is a brutal machine in mowing up to 6″ to 8″ brush, yet it cuts grass better than any of its rivals.

Do not limit yourself to doing one or the other? Be versatile, do not sacrifice any performance!

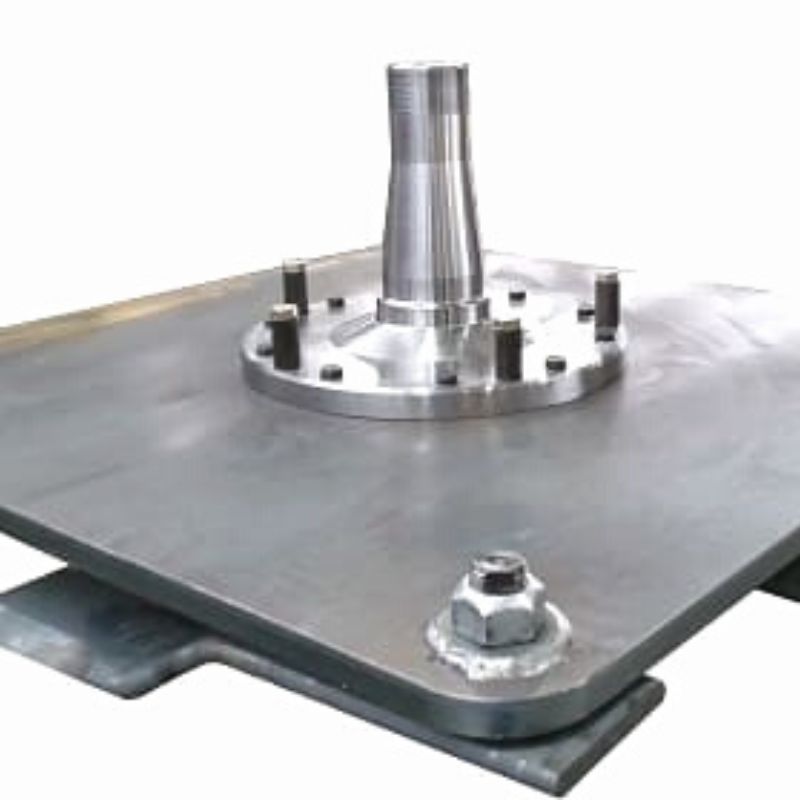

The extreme duty open Front Brush Cutter is a high-powered, standard flow or high flow, direct drive unit with a 1-year warranty. The purpose-built hydraulic motor drives a 3.5” forged one-piece drive spindle with a LIFETIME warranty against breakage. The direct drive bearing carrier is now grease-packed versus oil and can be greased from a zerk under the hood. This newly improved Brush Cutter has dramatically reduced downtime and bearing failures! It has a 13” x 1” flange with 10 3/4″ bolts connecting the blade carrier instead of a spline shaft under the deck. These Brush cutter come with 4 blades on a 72" and 3 blades for a 60". The wire protection kit between the deck and the blade carrier keeps fence wire and vines away from the lower bearing seal and reduces downtime from hidden debris. This sturdy yet smooth cutter will produce a cleaner cut at a quicker travel speed than was thought possible on a low-flow skid steer. The 10” deck clearance and the raised back allow cut debris to escape and easily avoid bunching under the deck.

• 3.5″ (at bearing, 4″ at seal) forged one-piece spindle is the toughest in the industry. We have yet to see one break!
• Grease filled drive dramatically improves bearing life and downtime due to seal damage

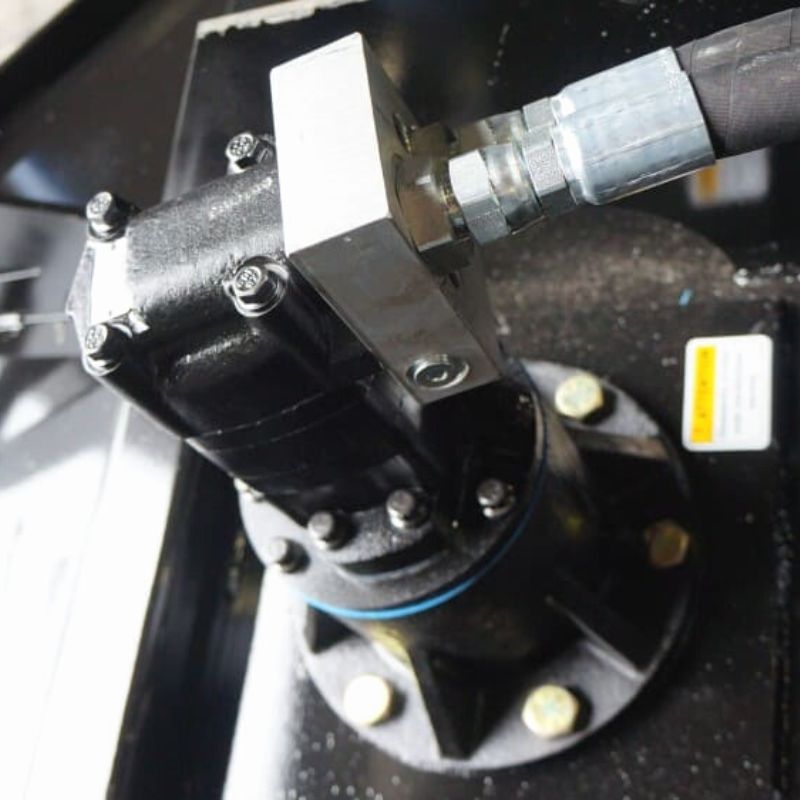

• Custom purpose-built motor and relief block out last industry standard motors
• External cross-port reliefs protect motor versus internal relief valves
• A fully enclosed motor compartment keeps out the debris that causes overheating issues, especially see in new Tier 4 version machines.
• No rear roller to bounce off stumps or pull cut debris along. Open design allows smoother operation
• Bi-directional cutting allows for control of the discharge angle, as well as doubling the use of the blades
